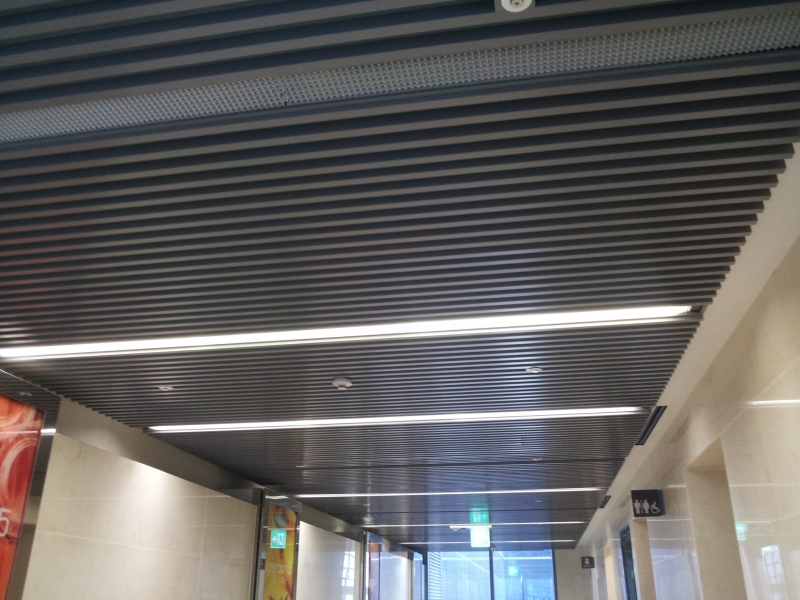

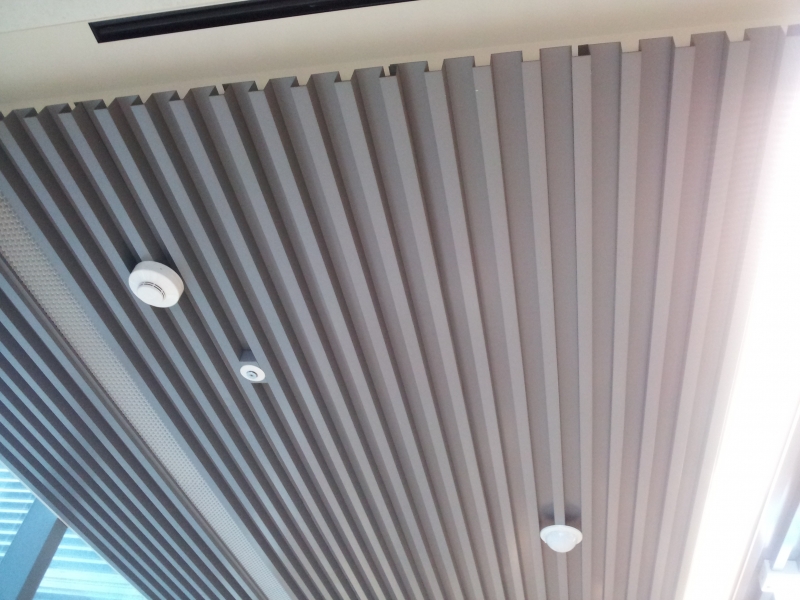

AL SPANDREL CANO 26S
  • HOME
  • >
  • Products
  • >
  • AL SPANDREL CANO 26S

Composition of AL SPANDREL CAN0 26S

(1) Material

  • KSD 3506 (melt galvanized steel plate)
    KSD 3609 (Steel material support member for construction)

(2) Dimension

  • ① M-BAR : 50mm X 19mm X 0.5T
  • ② HANGER BOLT : ψ9mm
  • ③ HANGER & PIN : 100mm X 20mm X 2.0T
  • ④ HANGER NUT : ψ9mm
  • ⑤ CARRYING CHANNEL : 38mm X 12mm X 1.2T
  • ⑥ C/C JOINT : 100mm X 35mm X 10mm X 1.0T
  • ⑦ MINOR CHANNEL : 19mm X 10mm X 1.2T
  • ⑧ M/C CLIP : 38mm X 23mm X 14mm X 1.2T
  • ⑨ M-BAR CLIP : 38mm X 47mm X 0.5T
  • ⑩ M-BAR JOINT : 85mm x 47mm x 0.5T
  • ⑪ AL MAIN JOINER : 폭=20MM, 15MM, L=3,000
  • ⑫ AL CROSS JOINER & CLIP : 폭=20MM, 15MM, L=600

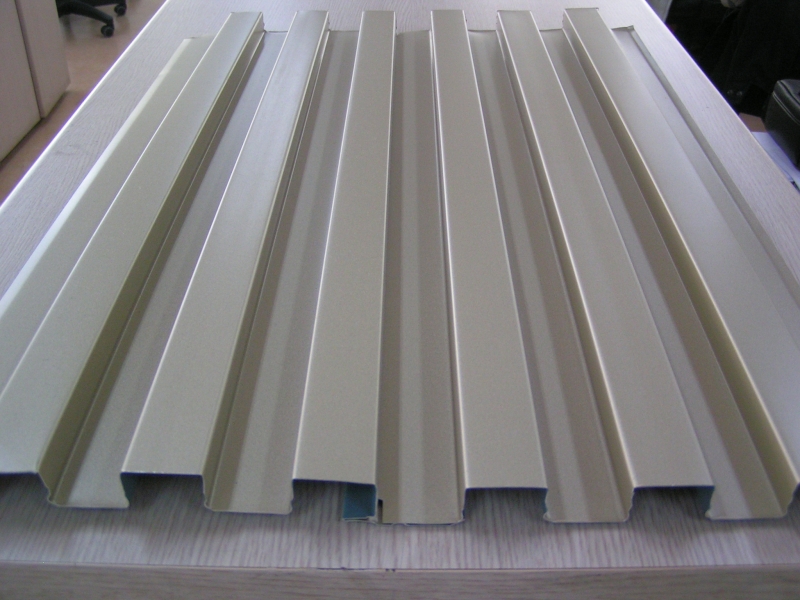

  • ⑬ AL SPANDREL(CANO-26S) : 0.5T,
  • ⑭ Molding for prevention of falling off :37 x 18 x 1.0T
  • ⑮ SUS fixing clip






(1) Setting up centerline of building: After accurate measurement of ceiling surface set up centerline after checking other work schedule such as lightline and position of diffuser etc.

(2) Strong anchor work

  • ① At the time of strong anchor work when centerline is set up mark part for fixing strong anchor (Ф9mm) at slab surface and punch hole with drill and fix it.
  • ② At the time of work for cash iron insert (Ф9 mm) install it at form according to drawing.
  • ③ Caution: Pay attention to intervals between anchor and insert and right angle.
  • ④ It is ideal to make interval for installation as @900∼ 1,200 mm for strong anchor or insert in consideration of direction of installation of carrying channel.

(3) Molding line level check

  • ① Use of water level or level
  • a. Confirming position by means of drawing (confirming height of ceiling)
  • b. Confirming the position by water level and ink pot string marking between positions.
  • ② Caution: At the time of using water check make sure to check level after checking any presence of air bubble in hose and breaking of hose.

(4) Attachment of wall molding (using after painting molding by desired color.)

  • ① Attach molding along the India ink line and fix wall molding by using 1" concrete nail. (interval: 500∼1,000 mm)
  • ② Be careful not to slacken the height and interval between moldings.
  • ③ In connection with facilities such as curtain box it shall be attached according to specification.

(5) Installation of hanger bolt

  • ① Upper part of hanger bolt is fixed to strong anchor or insert and lower part of bolt is fixed hanger and nut in consideration of ceiling height.
  • ② At the place where installation duct or other obstacles are work shall be carried out after reinforcement according to drawing and specification.

(6) Installation of lightline

  • Install lightline according to specification but it is required to have consultation with persons in charge of electricity and facility.

(7) Installation of carrying channel

  • After tying hanger set and carrying channel and fix them. Install it at an interval of @900∼1,200 mm. Connect the connecting part of carrying channel by means of carrying joint.
  • And make sure to install carrying channel not to be off from box face by more than 30 cm.

(8) Installation of MINOR Channel

  • When area of work is broad reinforce and fix above the installed carrying channel with reinforcing channel (minor channel) and install it at an interval of 2,000 ∼3,000 mm.

(9) Installation of M-Bar

  • ① After placing string at centerline of the work then install sturdily M-Bar by using M-Bar Clip by matching it to lightline and in a right angle direction toward carrying channel.
  • ② Intervals of installation M-Bar shall comply with drawing and specification based in each type. Provided that, when it is not shown in drawing or specification usually it shall be installed with an interval of @300 mm.
  • ③ M-bar is installed by mounting it on wall molding or wing part of curtain box.
  • ④ Level of installed ceiling shall be accurately set by water level or level device and by using hanger bolt and nut.

(10) Installation of Cano 26S

  • ① Fix Cano 26S at M-bar with screw and insert other Cano 26S by inserting it into fixed Spandrel.

(11) Installation of curtain box

  • ② Manufacturing and installing products suitable to use according to specification (separate painting)
  • ③ Welding work is carried out concurrently therefore install work bench to enable safety in work and working in comfortable stance.

(1) Handling and storage of the product

  • ① It shall be stored at a condition of relative humidity of 80% or less.
  • ② To prevent any damage from water or moisture always keep it at dry and clean place.
  • ③ Be careful not to damage corners
  • ④ Maintain certain space from the wall surface and place spread sheet and then lay down water-proof sheet then preserve it.

(2) Environmental condition at the time of carrying out the works

  • ① At the time of works temperature of 30℃ or less and relative humidity of 80% or less shall be maintained.
  • ② The works shall be commenced after completion of joiners' works.
  • ③ Before. during and after the works air-conditioners shall be operated so that proper level of indoors temperature and relative humidity are maintained.
  • ④ The works shall be commenced after completion of all the papering and painting walls and ceiling.

(3) Caution at the time of carrying out works

  • Pipe-layng and electric works shall be completed before installation of M-bar and then works shall be carried out.

(4) Conditions for carrying out works

  • ① The contractor for the works shall consult with the client with sufficient consideration of site conditions.
  • ② While carrying out works at the time of appearance of any problems works shall be continued after sufficient consultation with the client.
  • ③ As much as possible ceiling plan intended by the designer shall be observed.
